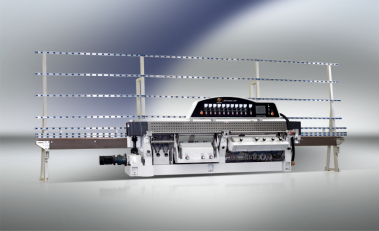

10 Motors LZM 10325-60°Glass Edging Machine LZM 10325-60°Glass Straight Edging Machine has increased the function of polishing multipole edge that it basic model without. That means the botton edge of glass could be polished as any angle between 0 to 60 degree at one time. Front chamfer can be moved between 0 to 45 degree.
Description
The LZM 10325-60° glass straight-line edging machine is a versatile and high-precision tool designed for grinding the straight edges of flat glass with varying sizes and thicknesses. It efficiently completes coarse grinding, fine grinding, chamfering, and polishing in a single operation. The machine’s grinders, numbered #1 to #5, can be adjusted to swing between 0 and 60 degrees, allowing precise edge grinding at the specified 60° angle. Equipped with frequency control, the motor speed and working load are smoothly adjustable via a continuously variable transmission mechanism, ensuring optimal performance for different glass thicknesses. Additionally, the adjustable front rail allows the machine to easily adapt to various glass sizes, further enhancing its flexibility and efficiency. The machine features an automatic clamping system and a voltage stabilization system, which ensure consistent pressure and power throughout the grinding process, delivering high-quality results. Technical Specification
Distribution of Wheels
|
